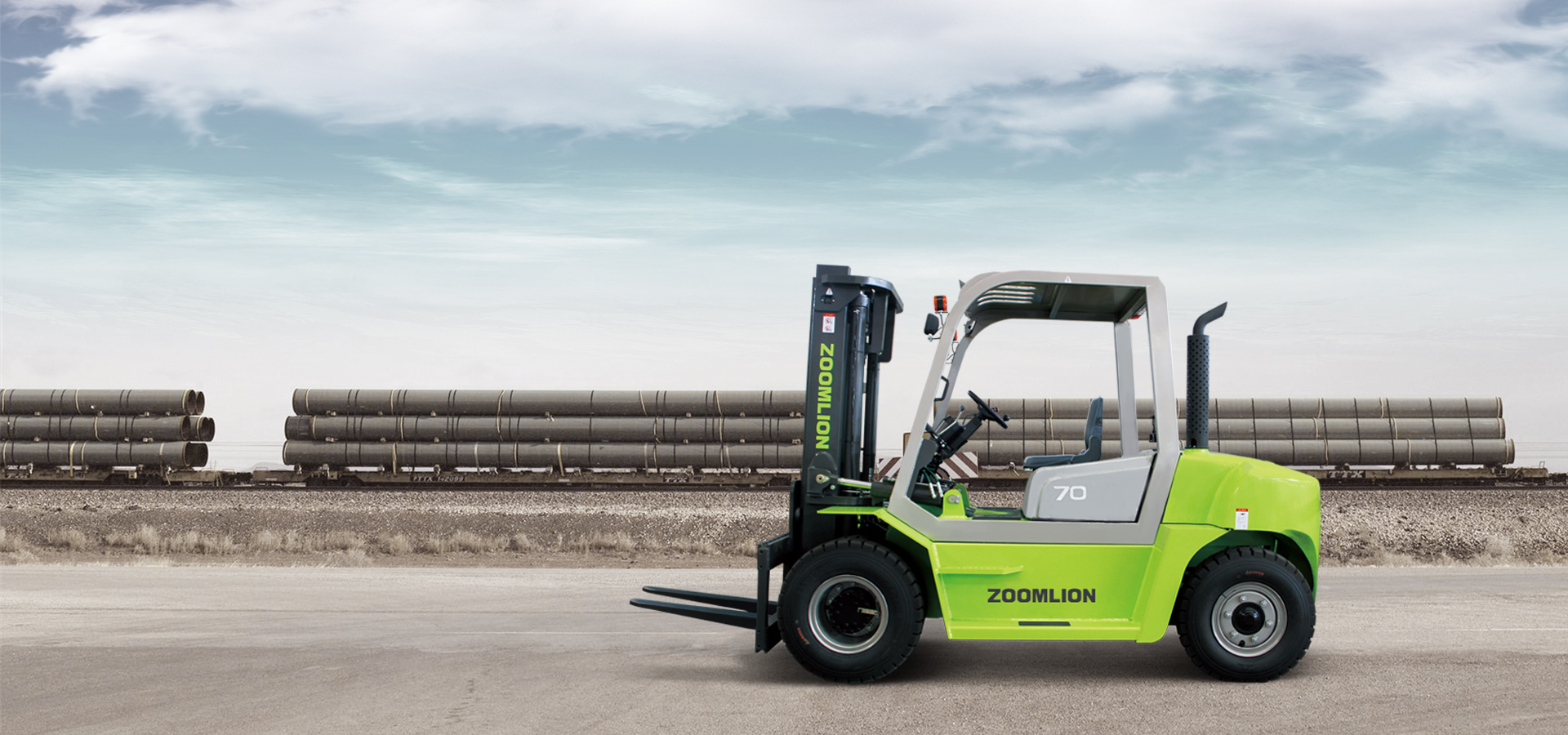

FD60Z
FD60Z
Internal Combustion Forklift
FD60Z

Reinforced mast with wide view design improves efficiency and safety;

Engine is with large torque and capacity, which is powerful and can meet different operation demands;

Lifting system is equipped with up and down buffer cylinders, which reduce shock and vibration efficiently;

Hydraulic system is equipped with the throttling valve, which makes operation safe and reliable.

  • 3320-3507 mm
    Min. Turning Radius
  • 350/450 mm/s
    Max. Lifting Speed(loaded/empty)
  • 7000 mm
    Max. Lifting Height
  • 5000-7000 kg
    Rated Capacity
  • 3320-3507 mm
    Min. Turning Radius
  • 350/450 mm/s
    Max. Lifting Speed(loaded/empty)
  • 7000 mm
    Max. Lifting Height
  • 5000-7000 kg
    Rated Capacity
Advantage introduction
    • It can be equipped with Japanese engine, with strong power and low failure rate.

    • Spacious driving space. USB cigarette lighter and charging port are optional for outdoor operation.

    • Conical design is adopted for pipe joints to prevent oil leakage.

More Advantages
Performance
Speed
Gradeability
Power
Size
Rated capacity 6000Kg
Load centre 600
Lifting height 3000
Free lifting height 208
Tilting angle 6°/12°
Turning radius 3507
Front overhang 615
Tread 335
Wheelbase 2340
Fork spread(Min./Max.) -
Working aisle width with pallet(Ast) -
Service weight -
Operating pressure for attachment 20MPa
Travel (Laden) 26
Travel(Unladen) 30
Lifting(Laden) 460
Lifting(Unladen) 485
Lowering (Laden) 400
Lowering(Unladen) 350
Laden 0.2
Unladen 0.2
Driven motor -
Pump motor -
Battery -
Controller -
Rear Wheel 8.25-15-14PR
Front Wheel 8.25-15-14PR
Overall Dimension(L×H×W) 3547×2000×2500
Weight 8640
Rated capacity 6000Kg
Load centre 600
Lifting height 3000
Free lifting height 208
Tilting angle 6°/12°
Turning radius 3507
Front overhang 615
Tread 335
Wheelbase 2340
Fork spread(Min./Max.) -
Working aisle width with pallet(Ast) -
Service weight -
Operating pressure for attachment 20MPa
Travel (Laden) 26
Travel(Unladen) 30
Lifting(Laden) 460
Lifting(Unladen) 485
Lowering (Laden) 400
Lowering(Unladen) 350
Laden 0.2
Unladen 0.2
Driven motor -
Pump motor -
Battery -
Controller -
Rear Wheel 8.25-15-14PR
Front Wheel 8.25-15-14PR
Overall Dimension(L×H×W) 3547×2000×2500
Weight 8640
