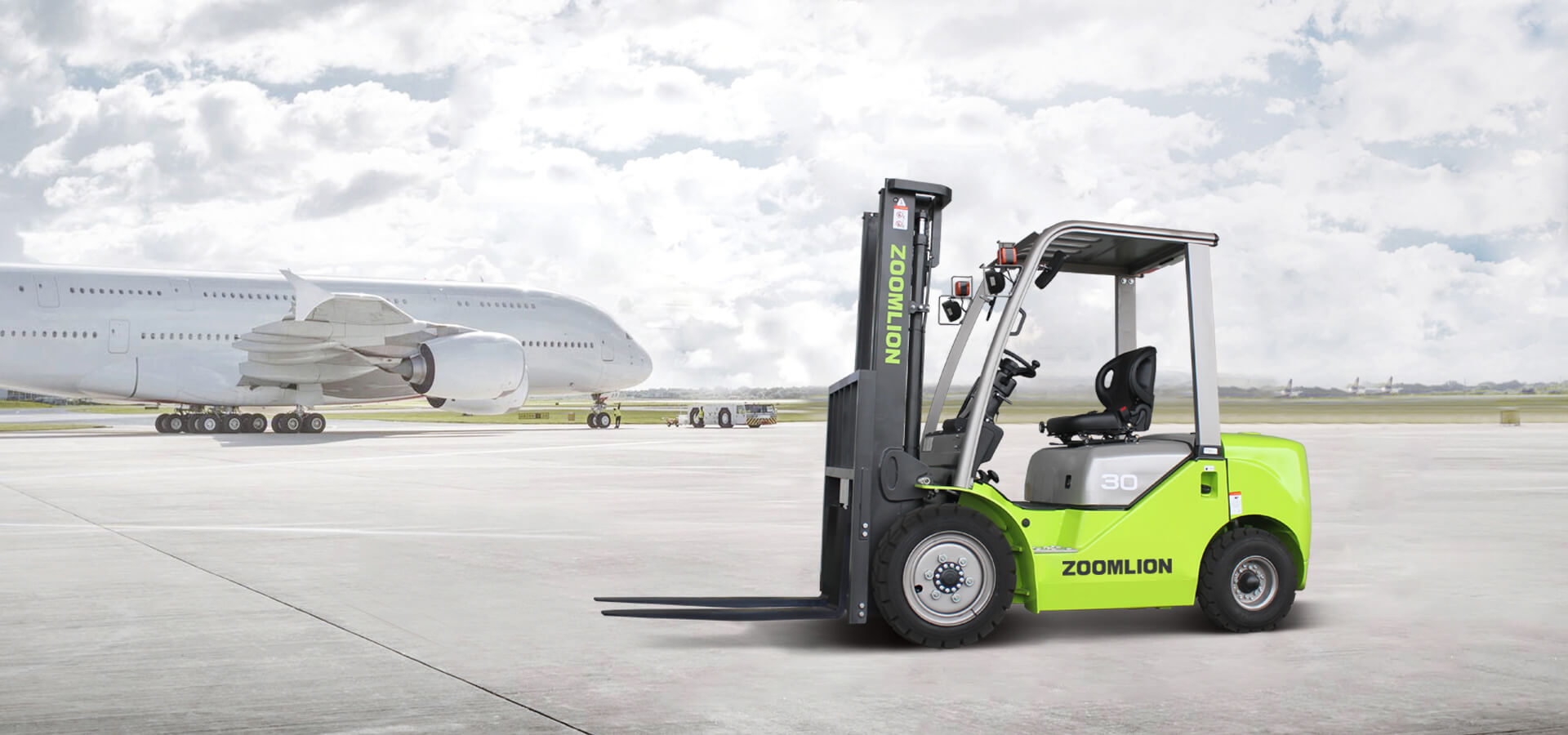

FD35H
FD35H
Internal Combustion Forklift
FD35H

Combine Isuzu C240/4JG2, Mitsubishi S4S diesel engine and Nissan K25 gasoline engine with automatic transmission design, operator has got a powertrain that delivers strong load handling and smooth acceleration.

LED Display offers useful information, such as the fuel meter, water temperature indicator and hour meters. USB charger and power outlet are special designed for the convenience of operator.

Get Pricing
  • 2240-2445 mm
    Min. Turning Radius
  • 470/520 mm/s
    Max. Lifting Speed(loaded/empty)
  • 7000 mm
    Max. Lifting Height
  • 2000-3500 kg
    Rated Capacity
  • 2240-2445 mm
    Min. Turning Radius
  • 470/520 mm/s
    Max. Lifting Speed(loaded/empty)
  • 7000 mm
    Max. Lifting Height
  • 2000-3500 kg
    Rated Capacity
Advantage introduction

    • Japanese Kubota engine has passed EPA certification and is widely used in European and American markets.

    • Exquisite operating platform and integrated LED display can display all driving information and provide maximum comfort.

    • The mast is designed with large channel steel, with firm structure and strong bearing capacity. The front twin cylinder mast is optional for better visibility.

More Advantages
Performance
Speed
Gradeability
Power
Size
Rated capacity 3500Kg
Load centre 500mm
Lifting height 3000mm
Free lifting height 145mm
Tilting angle 6°/12°
Turning radius 2445mm
Front overhang 488mm
Tread 460mm
Wheelbase 1700mm
Fork spread(Min./Max.) -
Working aisle width with pallet(Ast) -
Service weight -
Operating pressure for attachment 17.5MPa
Travel (Laden) 19Km/h
Travel(Unladen) 20Km/h
Lifting(Laden) 410mm/s
Lifting(Unladen) 440mm/s
Lowering (Laden) ＜600mm/s
Lowering(Unladen) ≥300mm/s
Laden 0.2
Unladen -
Driven motor -
Pump motor -
Battery 90Ah/12V
Controller -
Rear Wheel 28x9-15-12PR
Front Wheel 6.50-10-10PR
Overall Dimension(L×H×W) 2745×2090×1230
Weight 4800
Rated capacity 3500Kg
Load centre 500mm
Lifting height 3000mm
Free lifting height 145mm
Tilting angle 6°/12°
Turning radius 2445mm
Front overhang 488mm
Tread 460mm
Wheelbase 1700mm
Fork spread(Min./Max.) -
Working aisle width with pallet(Ast) -
Service weight -
Operating pressure for attachment 17.5MPa
Travel (Laden) 19Km/h
Travel(Unladen) 20Km/h
Lifting(Laden) 410mm/s
Lifting(Unladen) 440mm/s
Lowering (Laden) ＜600mm/s
Lowering(Unladen) ≥300mm/s
Laden 0.2
Unladen -
Driven motor -
Pump motor -
Battery 90Ah/12V
Controller -
Rear Wheel 28x9-15-12PR
Front Wheel 6.50-10-10PR
Overall Dimension(L×H×W) 2745×2090×1230
Weight 4800
