ZR300L
ZR300L

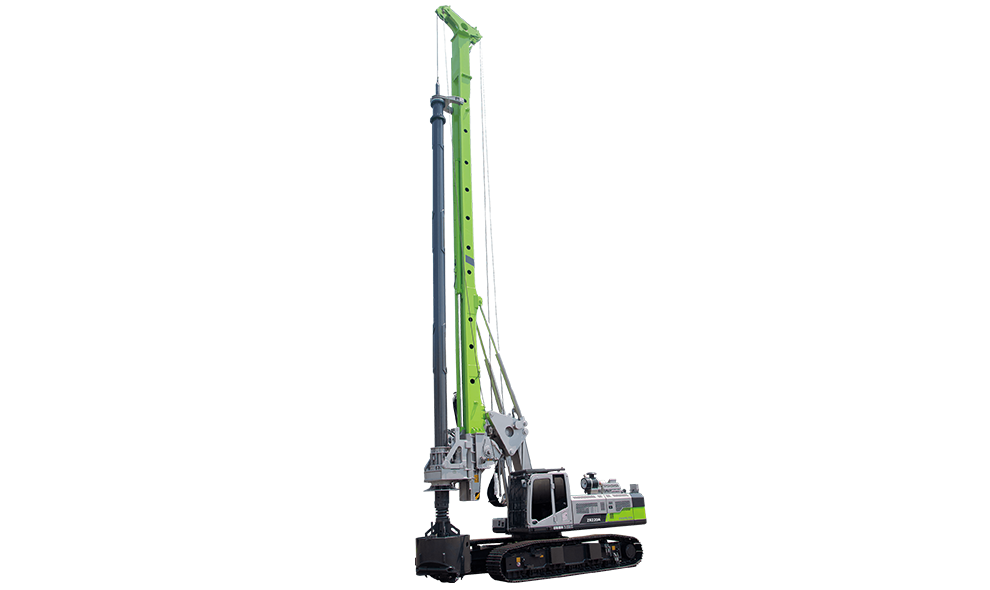

Rotary Drilling Rig
ZR300L

ZR300D rotary drilling rig is a high-performance, high-reliability piling product designed and developed by our company with years of technological achievements in design and manufacture of foundation construction machinery and in combination with international advanced technology, in order to adapt to market demand. This high-tech product with highly integrated mechanical, electric and hydraulic systems is widely used in all fields of China's infrastructure construction thanks to its excellent maneuverability, huge drilling & lifting capacity. It is applying to pile foundation projects of the construction such as railroads, highways and bridges.

  • 2500 mm
    Max. drlling diameter
  • 88/58 m
    Max. drlling depth
  • 320 kN·m
    Max. output torque
  • 6-33 rpm
    Rotary speed range
  • 2500 mm
    Max. drlling diameter
  • 88/58 m
    Max. drlling depth
  • 320 kN·m
    Max. output torque
  • 6-33 rpm
    Rotary speed range
Advantage introduction
    • Fixed mast support. Equipment can be transferred easily and quickly.

    • Rotary drive with three motors, which ensures large torque, high reserve coefficient and stronger construction capacity.

    • High construction efficiency thanks to big flow main pump, multi-gear rotary drive.

    • More stable structure and stronger bearing capacity thanks to large supporting angle of the mast cylinder, lower center of gravity, and reinforced chassis.

    • New generation cab with better vision, more comfortable operation, new electrical controlpanel.360 full view monitoring.

    • Options: Auto-lubrication, spin-off.

More Advantages
Drilling
Rotary drive
Crowd system
Main winch
Aux.winch
Inclination angle of mast
Engine
Undercarriage
Overall main machine
Max.drilling diameter 2500mm
Max.drilling depth 88/58m
Max. output torque 320kN ·m
Rotary speed range 6~33rpm
Crowd method Cylinder
Crowd force push 260kN
Crowd force pull 335kN
Max. stroke crowd 6000mm
Max. line pull 340kN
Max. speed of line 72m/min
Diameter of wire rope 36mm
Max. line pull 90kN
Max. speed of line 70m/min
Diameter of wire rope 22mm
Forward/backward 5/90°
Left/right ±4°
Model Cummins QSM11
Rate power of engine 298kW
Emission standard Stage Ⅲ
Displacement of engine 10.8L
Distance of tracks 3510~4860mm
Width of track shoe 800mm
Slewing radius 4684mm
Operation weight 105t
Max. traction force 560kN
Max. travelling speed 1.72km/h
Overall height 3520mm
Transport with Kelly bar -
Transport height -
Max.drilling diameter 2500mm
Max.drilling depth 88/58m
Max. output torque 320kN ·m
Rotary speed range 6~33rpm
Crowd method Cylinder
Crowd force push 260kN
Crowd force pull 335kN
Max. stroke crowd 6000mm
Max. line pull 340kN
Max. speed of line 72m/min
Diameter of wire rope 36mm
Max. line pull 90kN
Max. speed of line 70m/min
Diameter of wire rope 22mm
Forward/backward 5/90°
Left/right ±4°
Model Cummins QSM11
Rate power of engine 298kW
Emission standard Stage Ⅲ
Displacement of engine 10.8L
Distance of tracks 3510~4860mm
Width of track shoe 800mm
Slewing radius 4684mm
Operation weight 105t
Max. traction force 560kN
Max. travelling speed 1.72km/h
Overall height 3520mm
Transport with Kelly bar -
Transport height -
