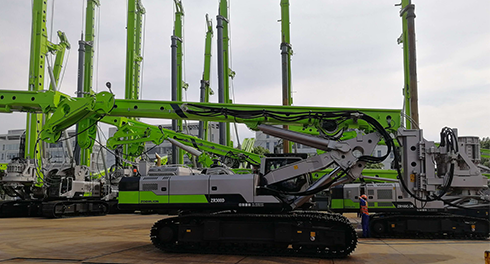

High drilling torque, High pressuring, and high construction efficiency.
Simple installation and convenient construction.Hoisting and pressurizing, long stroke is suitable for the working
condition of lower guard tube and long spiral.
Rotary drive with three motors, which ensures large torque, high reserve coefficient and stronger construction capacity.
High construction efficiency thanks to big flow main pump, multi-gear rotary drive.
More stable structure and stronger bearing capacity thanks to large supporting angle of the mast cylinder, lower center of gravity, and reinforced chassis.
New generation cab with better vision, more comfortable operation, new electrical controlpanel.360 full view monitoring.
Options: Auto-lubrication, spin-off.
Max.drilling diameter | 2500mm |
Max.drilling depth | 88/58m |
Max. output torque | 300kN ·m |
Rotary speed range | 5~28rpm |
Crowd method | Winch |
Crowd force push | 335kN |
Crowd force pull | 335kN |
Max. stroke crowd | 17100mm |
Max. line pull | 290kN |
Max. speed of line | 68m/min |
Diameter of wire rope | 32mm |
Max. line pull | 90kN |
Max. speed of line | 70m/min |
Diameter of wire rope | 22mm |
Forward/backward | 5/90° |
Left/right | ±4.5° |
Model | Cummins QSM11 |
Rate power of engine | 298kW |
Emission standard | Stage Ⅲ |
Displacement of engine | 10.8L |
Distance of tracks | 3540~4780mm |
Width of track shoe | 800mm |
Slewing radius | 4967mm |
Operation weight | 100t |
Max. traction force | 560kN |
Max. travelling speed | 1.72km/h |
Overall height | 24.9m |
Transport with Kelly bar | - |
Transport height | - |
