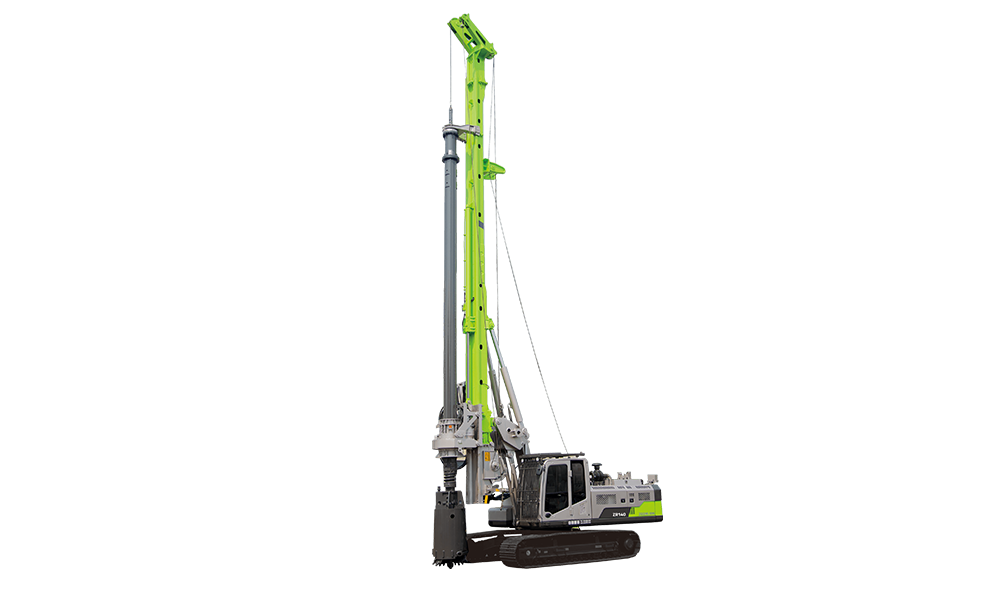

ZR140
ZR140
Rotary Drilling Rig
ZR140

The newly upgraded ZR140 is not only highly efficient in construction and retains its value, but is also transported with rods, has a small grounding ratio pressure, comes standard with 355*10 drill rods, has a hole diameter of 1300mm and a maximum drilling depth of 44m, making it a real helper for you to get rich.

Get Pricing
  • 6-33 rpm
    Rotary speed range
  • 140 kN·m
    Max. output torque
  • 44/35
    Max. drlling depth
  • 1300 mm
    Max. drlling diameter
  • 6-33 rpm
    Rotary speed range
  • 140 kN·m
    Max. output torque
  • 44/35
    Max. drlling depth
  • 1300 mm
    Max. drlling diameter
Advantage introduction

    • The whole machine can be transported with Kelly bar to realize quick transfer between operation and transportation.

    • Cummins engine with reliable performance and strong output power.

    • High construction efficiency, thanks to adoption of large displacement main pump and optimizing power system.

    • Less fuel consumption, thanks to adoption of a new generation of electronic control platform and proportional control hydraulic system.

    • The auxiliary winch can lift Dia.0.8m steel cage (with a Kelly bar).

    • Automatic multi-self-checking, safety and performance monitoring.

    • Options: Spin-off, auto-lubrication.

More Advantages
Drilling
Rotary drive
Crowd system
Main winch
Aux.winch
Inclination angle of mast
Engine
Undercarriage
Overall main machine
Other
Max.drilling diameter 1300mm
Max.drilling depth 44/35m
Max. output torque 140kN ·m
Rotary speed range 6~33rpm
Crowd method Cylinder
Crowd force push 130kN
Crowd force pull 160kN
Max. stroke crowd 3500mm
Max. line pull 140kN
Max. speed of line 80m/min
Diameter of wire rope 22mm
Max. line pull 80kN
Max. speed of line 70m/min
Diameter of wire rope 22mm
Forward/backward 5/90°
Left/right ±5°
Model Cummins QSB5.9-C16
Rate power of engine 119kW
Emission standard Stage II
Displacement of engine 5.9L
Distance of tracks 3000~4000mm
Width of track shoe 700mm
Slewing radius 3660mm
Operation weight 40t
Max. traction force 250kN
Max. travelling speed 2.2km/h
Overall height 16.7/(14.7)m
Transport with Kelly bar Yes
Transport height 3587mm
Kelly bar TypesDrilling depth(m)
Friction355-5x10m44
Inter-locking355-4x10m35
Friction355-5x8m35
Inter-locking355-4x8m28
Max.drilling diameter 1300mm
Max.drilling depth 44/35m
Max. output torque 140kN ·m
Rotary speed range 6~33rpm
Crowd method Cylinder
Crowd force push 130kN
Crowd force pull 160kN
Max. stroke crowd 3500mm
Max. line pull 140kN
Max. speed of line 80m/min
Diameter of wire rope 22mm
Max. line pull 80kN
Max. speed of line 70m/min
Diameter of wire rope 22mm
Forward/backward 5/90°
Left/right ±5°
Model Cummins QSB5.9-C16
Rate power of engine 119kW
Emission standard Stage II
Displacement of engine 5.9L
Distance of tracks 3000~4000mm
Width of track shoe 700mm
Slewing radius 3660mm
Operation weight 40t
Max. traction force 250kN
Max. travelling speed 2.2km/h
Overall height 16.7/(14.7)m
Transport with Kelly bar Yes
Transport height 3587mm
Kelly bar TypesDrilling depth(m)
Friction355-5x10m44
Inter-locking355-4x10m35
Friction355-5x8m35
Inter-locking355-4x8m28
