PL2304

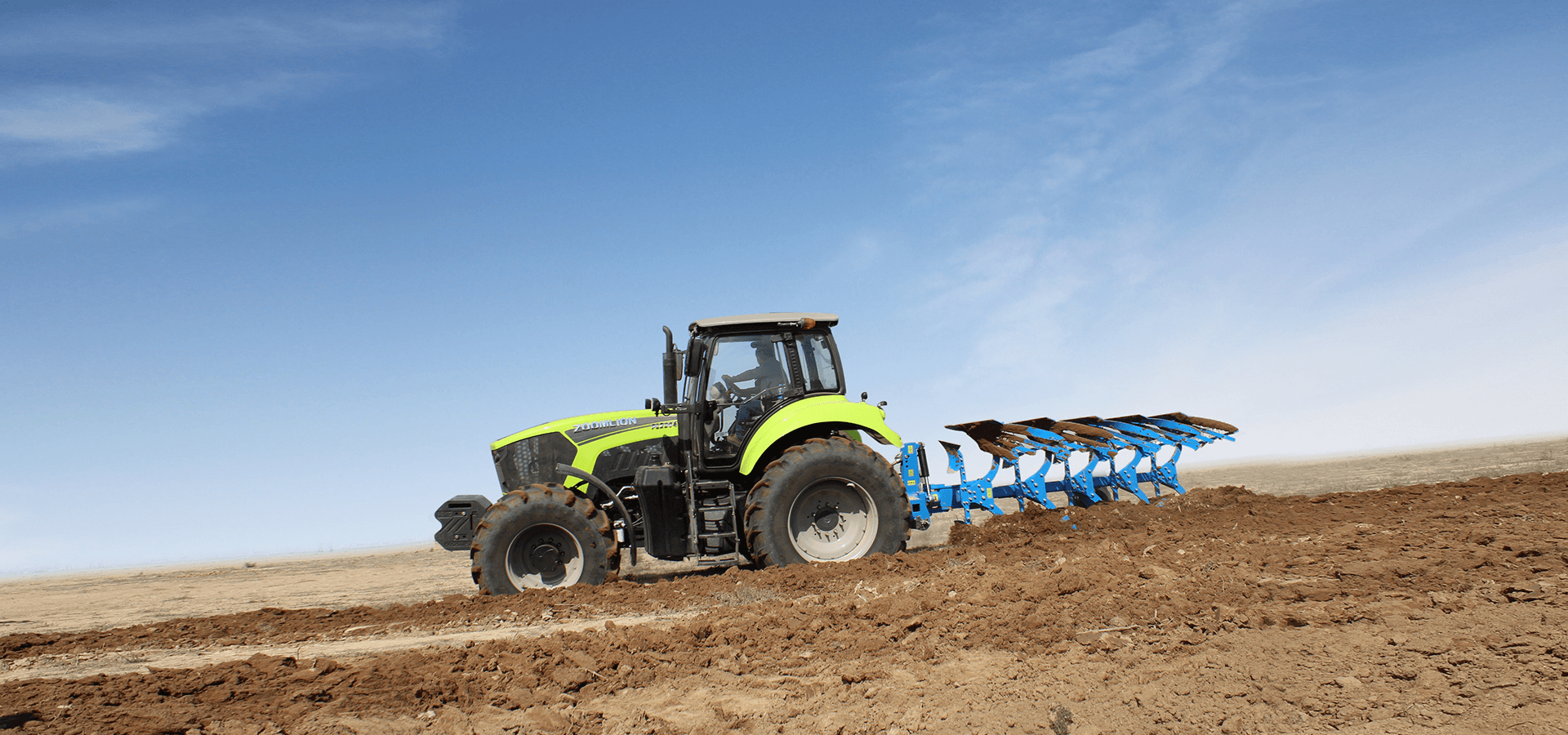

Wheeled Tractor

PL2304

High-powered Power Shift Wheeled Tractor

230 high-pressure common rail high-end diesel engine

40F+40R interval power shift gearbox with automatic shifting kinetic energy

Intelligent all-electric hydraulic control system

Automatic PTO function, conveniently turning on the edge of a field

GPS navigation and unmanned driving function as option

Get Pricing

Manual Download

Advantage introduction

All indexes and performances meet the European technical standards
230HP High pressure common rail high end diesel engine
40F+40R interval power shift gearbox
Be provided with whole machine all-electric hydraulic control system with the function of fault self diagnosis
The automatic PTO function enables the tractor to release and combine with the PTO clutch automatocally when turning on the turnrow

More Advantages

Param

Model	Unit	PL2304
Overall dimension (L×W × H)	mm	5715×2610×3200（Single tyre）
Wheelbase	mm	3085
Minimum mass during operation	kg	8575（Single tyre）
Minimum ground clearance	mm	430
Engine emission	/	National III
Rated power	kw	169.5
Fuel consumption rate	g/kW•h	≤228
Cluth type	/	multi-plate wet clutch
Number of gears of the gearbox	/	40F+40R
Tyre size (front wheel / rear wheel)	/	420/90R30，520/85R42
Type of hydraulic lifting system	/	Split type
Maximum lifting capacity	KN	≥60
Tillage control method	/	Electro hydraulic control
Hydraulic output multiway valve	/	4-position electronic-hydraulic proportional multi tandem valve
Hydraulic hitch	/	Three-point rear suspension,category III
Traction force	KN	≥74
PTO output power	kW	≥148
Power output speed	r/min	540E/1000N/1000E
Safety shelf or cab	/	Air-conditioned cab
